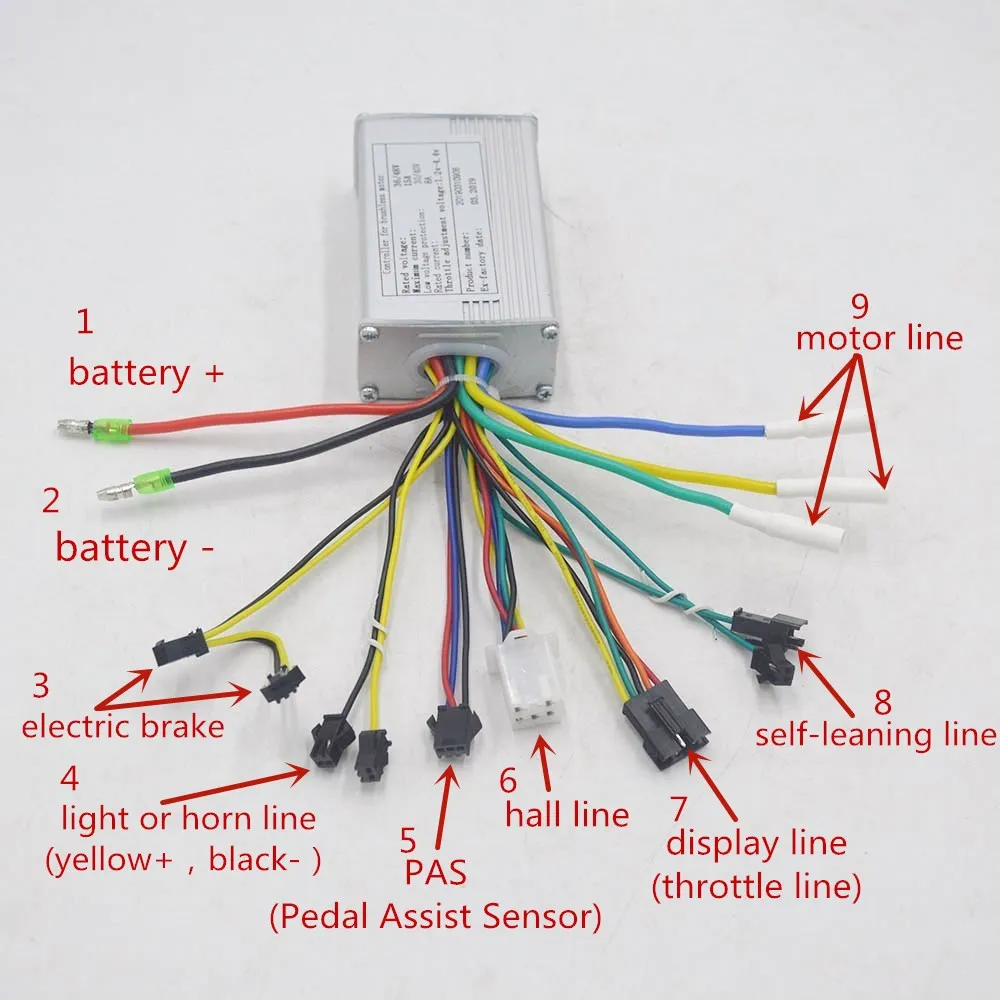

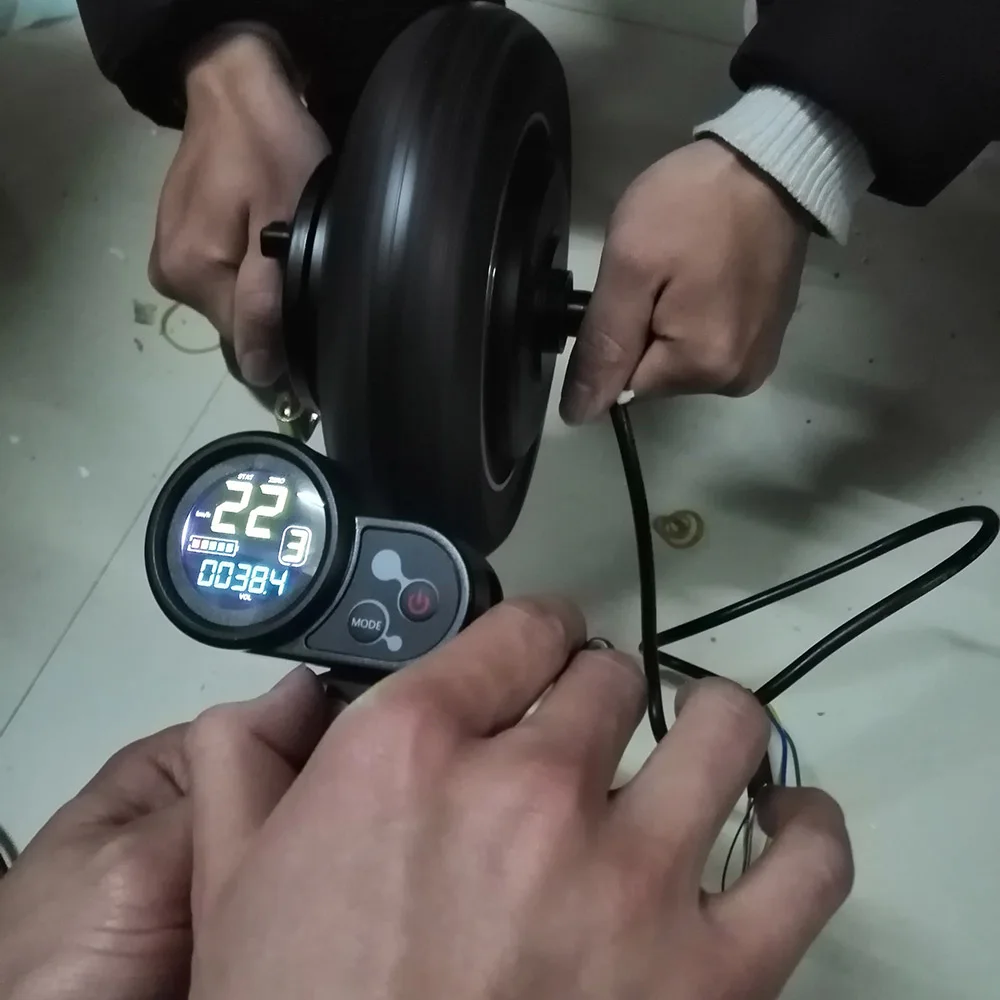

E bike controllerkit 250W 350w36V 48V DC Mode e scooter Brushless Motor Controller with electric bike LCD LCD display has different colors, we randomly send ProductDetails: 1.Voltage:36V 48V 2.Power: 250W-350W 3.Low-Voltage Protection: 36V:29+-0.5V 48V:39+-0.5V 4.Current Limite: 250W:13A+-1A 350W:15A+-1A This controller can work in hall sensor and also work in hall sensorless 36V 48V 250W controller &24V 36V 48V 350W controller function 1.motor line 2.hall line 3.display line 4.self-learning line 5.brake line 6.light or horn line(yellow:+ black:-) 7.PAS line 8.battery line(red: battery +, black: battery - ) Screen Show: 1. The current speed is displayed 2. Battery charge (voltage) display 3. Accumulated mileage display 4. Single mileage display 5. Pas display Display Setting: P01:Backlight brightness P02:Mileage unit P03:Voltage level P04:Dormancy time (0:Not dormant )Scope:1-60Unit:Minute P05:assistance gar P06:Wheel diameter:unit,inch;accuracy :0.1 P07:Speed magnetic steel numberScope:1-100 P08:Speed limitScope:0-100km/h 100:unrestricted speed P09:0:Zero start 1:Nonzero start P10:driving mode setting:0:power drive1:electric drive2:power drive and electric drivecoexistence P11:Assistance sensitivity settingScope:1-24 P12:Assistancestart strength P13:0D0 Clear zero setting Press and hold M and the power button to enter the mode setting interface, short press M to switch parameters. Display Setting: P03:Voltage setting P06: Wheel diameter P07: Number of speed magnets P99: One-key recovery function (in the P99 interface, press and hold M until the value is cleared)
